CopyMate

Scanning (Reverse Engineering & CAD Compare)

CopyMate is a reverse engineering system, combining high-precision laser probes with next-generation software. CopyMate creates high-quality 3D copy with ease and perfection, where intricate and detailed tasks are made simple – and fast. A one-stop solution for quality for laser scanning, CopyMate seamlessly combines the capabilities of laser technology into the world of CAD/CAM. Part copying, reverse engineering and part inspection, are now unbelievably fast and efficient.

Based on GraphiTech’s proprietary technologies, CopyMate securely fits CNC machines with laser probes to enable the collection of points from any given part, including copying intricate and detailed work from delicate jewelry settings to industrial parts. Designed and developed for a range of high-accuracy design markets, CopyMate customers include artisans, jewelry designers, engravers, embossers, medical equipment manufacturers, and mold makers. Easily customizable to suit individual customer requirements, CopyMate can be mounted on virtually any machine, and is now available as a complete,
end-to-end solution, in a wide range of sizes, speeds and accuracy levels.

COMPLIMENTRY PRODUCTS

  • High-accuracy laser measurements – 2 micron
  • Interchangeable lenses – for projects ranging from 0.6-180mm
  • Fast data acquisition – 10000 measurements per second
  • 3- or 4- axis scanning capabilities
  • Output – cloud of points, STL, TIFF, and P2P

CopyMate Scanning Machines

Coupled with its CopyMate software, GraphiTech is pleased to offer customers a choice of leading desktop scanning machines. Following is a detailed list of machine types and specifications.

I. Model ICV 4030

Specifications

  • Robust aluminum construction in industrial execution
  • Precision steel shaft guides with linear ball screws Ø 16 x 10mm (X/Y-axis) Ø 16 x 4mm (Z-axis)
  • Integrated DC-power electronics for 3-axis; 4-axis prepared
  • 16 inputs
  • 16 outputs
  • No main spindle drive
  • Travel stroke (X/Y/Z) mm: 395/300/100
  • Travel feed rate max. mm/s: 150/150/80
  • Gantry clearance mm: 150
  • Coordinate table (X x Y) mm: 600 x 375
  • Dimensions (LxWxH) mm: 780 x 850 x 810
  • Weight (approx.): ~150 kg.
  • Drive system: DC-servo motors
  • Controlling system: integrated 3-axis-servo controller with CAN-Bus, 4-axis prepared
  • Resolution mm: 0.01


 II.  Model MP45
Specifications

  • Robust aluminum construction in industrial execution
  • Precision steel shaft guides with linear ball screws Ø 16 x 10mm (X/Y-axis) Ø 16 x 4mm (Z-axis)
  • Integrated DC-power electronics for 3-axis; 4-axis prepared
  • 16 inputs
  • 16 outputs
  • No main spindle drive
  • Travel stroke (X/Y/Z) mm: 650/450/250
  • Travel feed rate max. mm/s: 150/150/80
  • Gantry clearance mm: 350
  • Coordinate table (X x Y) mm: 900 x 500
  • Dimensions (LxWxH) mm: 1160 x 1110 x 1700
  • Weight (approx.): ~350 kg.
  • Drive system: DC-servo motors
  • Controlling system: integrated 3-axis-servo controller with CAN-Bus, 4-axis prepared
  • Resolution mm: 0.01


 III.       Model MP65
Specifications

  • Robust aluminum construction in industrial execution
  • Precision steel shaft guides with linear ball screws Ø 16 x 10mm (X/Y-axis) Ø 16 x 4mm (Z-axis)
  • Integrated DC-power electronics for 3 axis; 4-axis prepared
  • 16 inputs
  • 16 outputs
  • No main spindle drive
  • Travel stroke (X/Y/Z) mm: 1000 x 650 x 250
  • Travel feed rate max. mm/s: 150/150/80
  • Gantry clearance mm: 150
  • Coordinate table (X x Y) mm: 1200 x 700
  • Dimensions (LxWxH) mm: 1480 x 1510 x 1700
  • Weight (approx.): ~500 kg.
  • Drive system: DC-servo motors
  • Controlling system: integrated 3-axis-servo controller with CAN-Bus, 4-axis prepared
  • Resolution mm: 0.01


General Specifications
PC (iSR 20):

  • CPU: Intel Celeron 220, 1,2 GHz
  • Memory: DDR2-RAM >=512MB
  • Slot: CAN-PCI-interface card
  • Hard disk: 2.5" HDD >=60 GB, S-ATA
  • 2 x USB connection integrated on front panel
  • 2 x USB connection integrated on board
  • 1 x switch for PC integrated on front panel
  • 1 x RJ45-connector for network integrated on board
  • 2 x PS2 connection (mouse, keyboard) integrated on back board
  • 1 x connection for VGA-monitor integrated on back board
  • Operating system options: Windows XP, Windows Vista


Electrical:

  • 1 x 230 V at 50 / 60 Hz
  • 1 x 16 Ampere one-phase alternating current (shock-proof plug)


Controller:

  • CNC controller CAN-BUS, PC integrated
  • Remote maintenance and process diagnostic with NetViewer service tool: Note: NetViewer diagnostic utility requires fast Internet access to the controlling PC
Industrial-applications-Artware

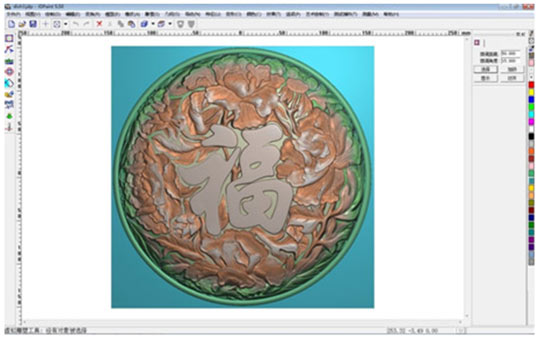

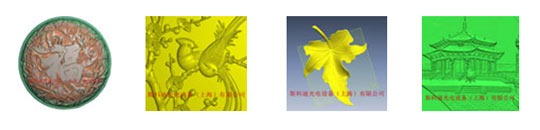

Industrial applications Artware

Scanning rendering



Advantage:

1. Automatically convert the data into stl format with high quality, which is ready for machining.
2. Scan sharp angular and deep concavities with micron accuracy
3. Highly versatile, enabling various working ranges on the same sensor using interchangeable lenses
4. Smart user-friendly wizard, which guides user through the process of setting up easily, then scan the part automatically
5. Very low laser power, long operating life

Recommend Lens: 50mm 100mm

Objective Focal length(mm)

50mm

100mm

Resolution (µm)

<0.1

Precision (µm)

<6

<15

Working Range (mm)

8

35

Standoff( (mm)

44

90

Sampling frequency

3000 pps

Output

STL/Points cloud/TIF

Angle range

0-170°

Operating Temperature

18 ~35°C

Laser security level

<1mw, Visible light



Scanning rendering


Industrial-applications-Ceramic-tile

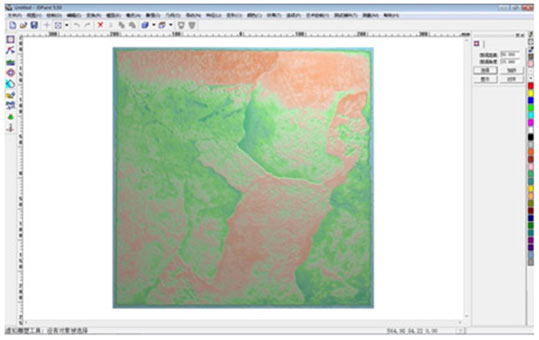

Industrial applications Ceramic tile

Scanning rendering


Advantage:

1. Suitable for a wide range of objects, including ceramics, frame, gypsum building product, relief wall draw and etc
2. Be able to scan very low and detailed part, as high as 0.0001mm resolution in Z axis
3. Global patented technology, provide highly precision data when scanning sharp angular and deep concavities
4. Robust data filtering and processing, fix bad points and has texture filters function
5. High speed of data rate, up to 3000pps per second
6. Output format is Tif, Stl and points cloud data
7. Highly versatile, enabling various working ranges on the same sensor using interchangeable lenses

 Recommend Lens: 25mm 40mm



Objective Focal length(mm)

25mm

40mm

Resolution (µm)

<0.1

Precision (µm)

<3

<4

Working Range (mm)

1.8

4

Standoff( (mm)

15

43

Sampling frequency

3000 pps

Output

STL/Points cloud/TIF

Angle range

0-170°

Operating Temperature

18 ~35°C

Laser security level

<1mw, Visible light




Scanning rendering?

Industrial-applications-Coins

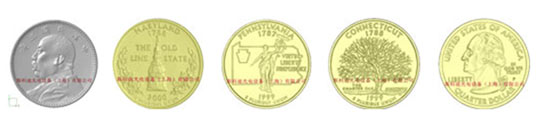

Industrial applications Coins

Scanning rendering



Advantage:
1. Suitable for partially shiny surfaces
2. Provide highly precision data when scanning sharp angular and deep concavities, as high as 0.002mm accuracy in Z axis
3. Filtering bad points on the fly?provide high quality surfaces by software ready for machining
4. Highly versatile, enabling various working ranges on the same sensor using interchangeable lenses
5. High speed of data rate, up to 3000pps per second


Recommend Lens: 25mm 50mm

Objective Focal length(mm)

25mm

50mm

Resolution (µm)

<0.1

Precision (µm)

<3

<6

Working Range (mm)

1.8

8

Standoff( (mm)

15

42

Sampling frequency

3000 pps

Output

STL/Points cloud/TIF

Angle range

0-170°

Operating Temperature

18 ~35°C

Laser security level

<1mw, Visible light



Scanning rendering:


Industrial-applications-Jewlery

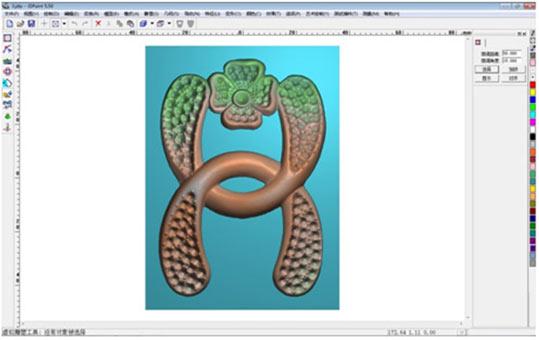

Industrial applications Jewlery

Scanning rendering



Advantage:

1. Suitable for scanning a wide range of materials, including metal, jade, bamboo objects
2. Provide highly precision data when scanning sharp angular and deep concavities, as high as 0.003mm accuracy in Z axis
3. Filtering bad points on the fly?provide high quality surfaces by software ready for machining
4. Highly versatile, enabling various working ranges on the same sensor using interchangeable lenses
5. High speed of data rate, up to 3000pps per second

 Recommend Lens: 25mm 50mm

Objective Focal length(mm)

25mm

50mm

Resolution (µm)

<0.1

Precision (µm)

<3

<6

Working Range (mm)

1.8

8

Standoff( (mm)

15

42

Sampling frequency

3000 pps

Output

STL/Points cloud/TIF

Angle range

0-170°

Operating Temperature

18 ~35°C

Laser security level

<1mw, Visible light



Scanning rendering:


Industrial-applications-Texture

Industrial applications Texture

Scanning rendering


Advantage:

1. Be able to scan very low and detailed part, as high as 0.0001mm resolution in Z axis
2. Global patented technology, provide highly precision data when scanning sharp angular and deep concavities
3. Robust data filtering and processing, fix bad points and has texture filters function
4. High speed of data rate, up to 3000pps per second
5. Output format is Tif, Stl and points cloud data
6. Highly versatile, enabling various working ranges on the same sensor using interchangeable lenses

 Recommend Lens: 16mm 25mm



Objective Focal length(mm)

16mm

25mm

Resolution (µm)

<0.1

Precision (µm)

<2

<3

Working Range (mm)

0.6

1.8

Standoff( (mm)

12

15

Sampling frequency

3000 pps

Output

STL/Points cloud/TIF

Angle range

0-170°

Operating Temperature

18 ~35°C

Laser security level

<1mw, Visible light




Scanning rendering:


Button-and-buckle-scanning

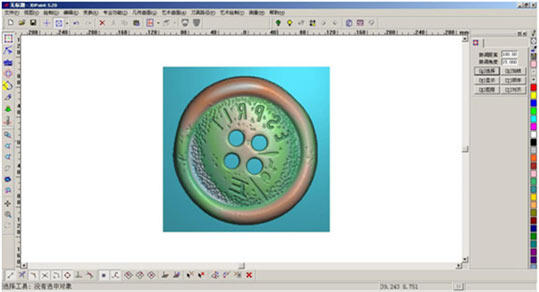

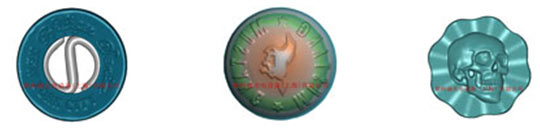

Button and buckle scanning

Scanning rendering

Advantage:
1. Provide highly precision data when scanning sharp angular and deep concavities, as high as 0.002mm accuracy in Z axis
2. Filtering bad points on the fly?provide high quality surfaces by software ready for machining
3. Highly versatile, enabling various working ranges on the same sensor using interchangeable lenses
4. High speed of data rate, up to 3000pps per second


Recommend Lens: 25mm 40mm

Objective Focal length(mm)

25mm

50mm

Resolution (µm)

<0.1

Precision (µm)

<3

<6

Working Range (mm)

1.8

8

Standoff( (mm)

15

42

Sampling frequency

3000 pps

Output

STL/Points cloud/TIF

Angle range

0-170°

Operating Temperature

18 ~35°C

Laser security level

<1mw, Visible light




Scanning rendering
